Specifications

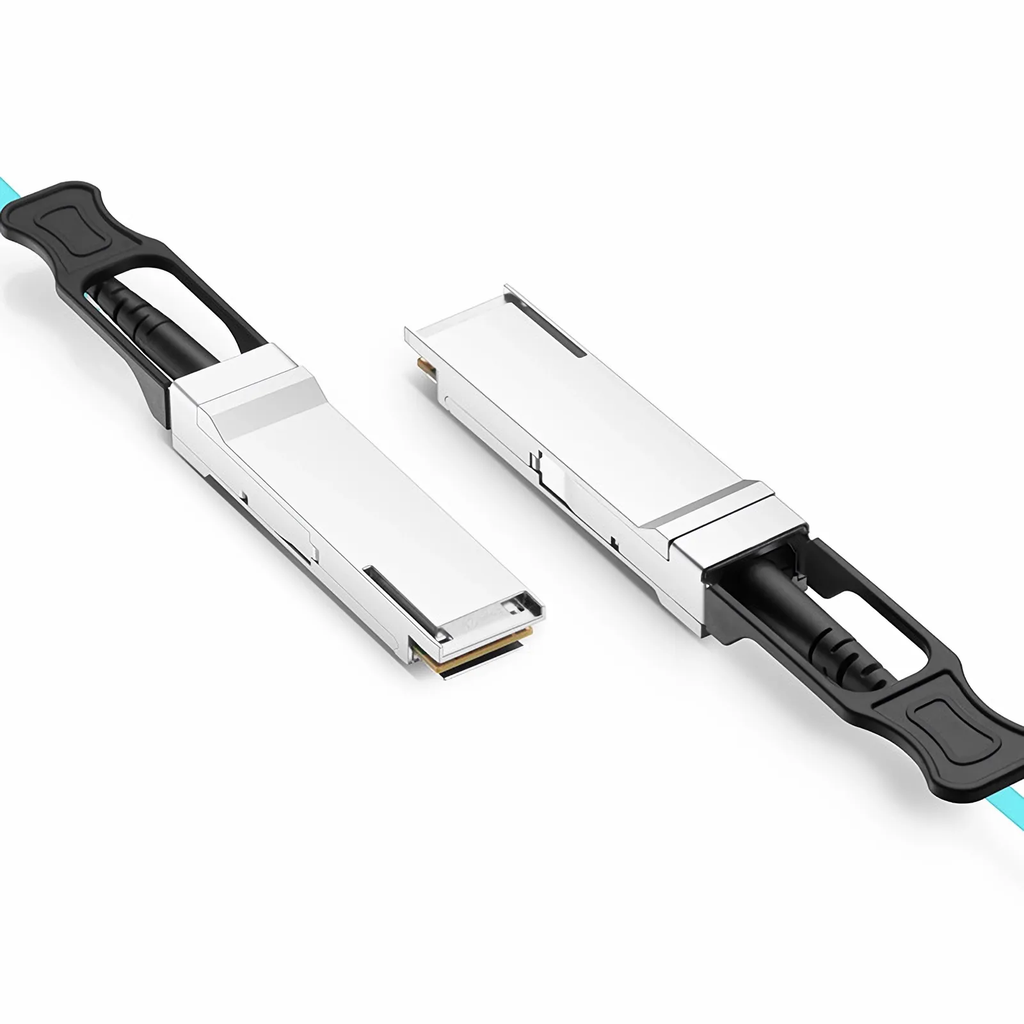

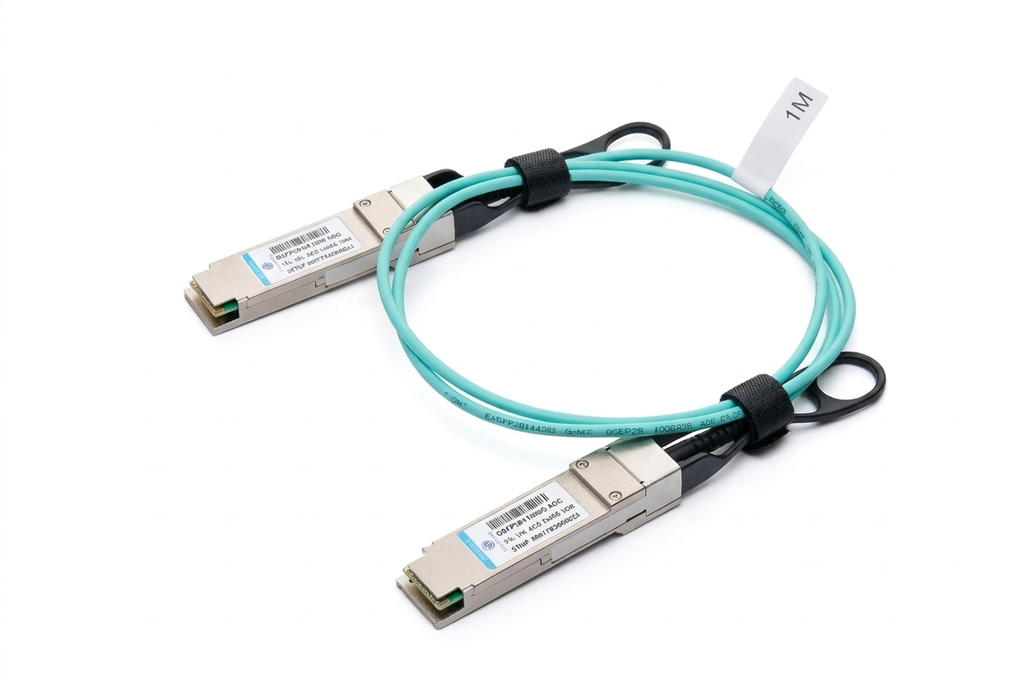

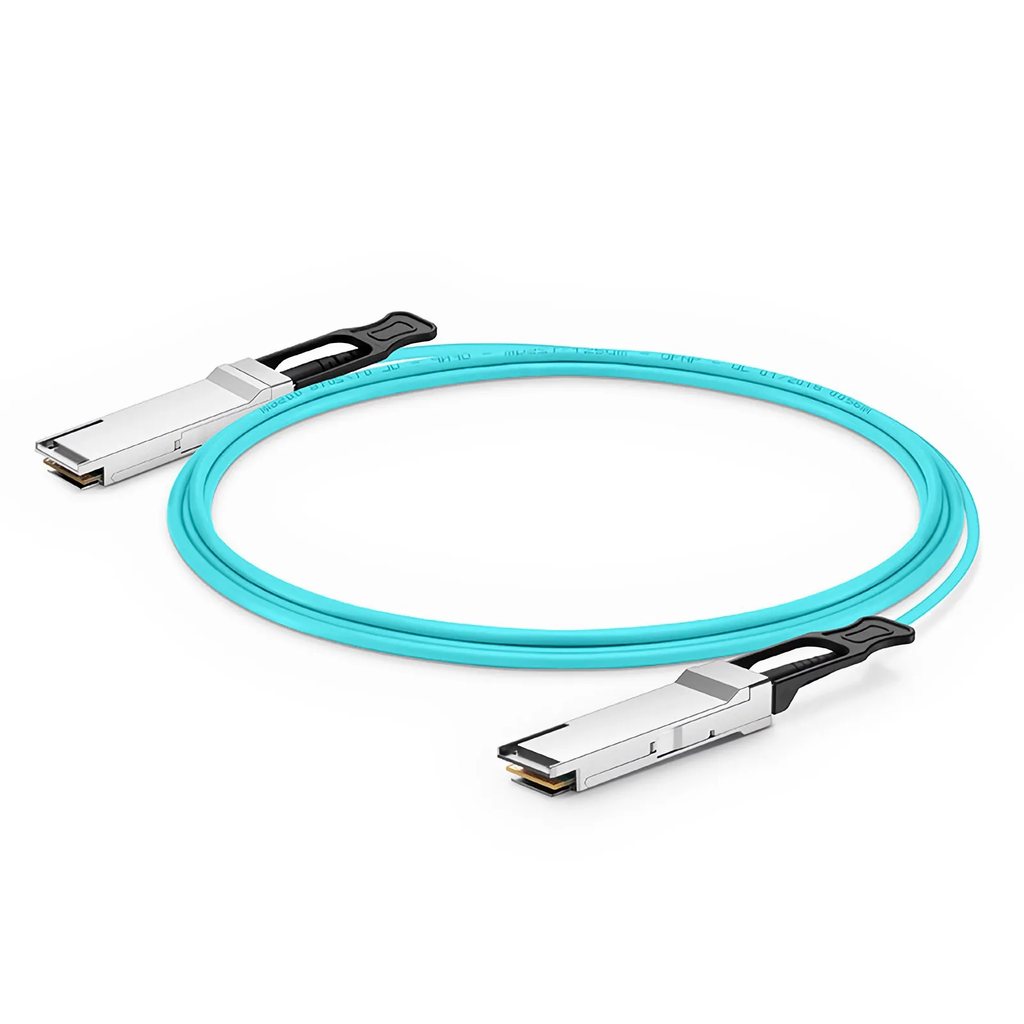

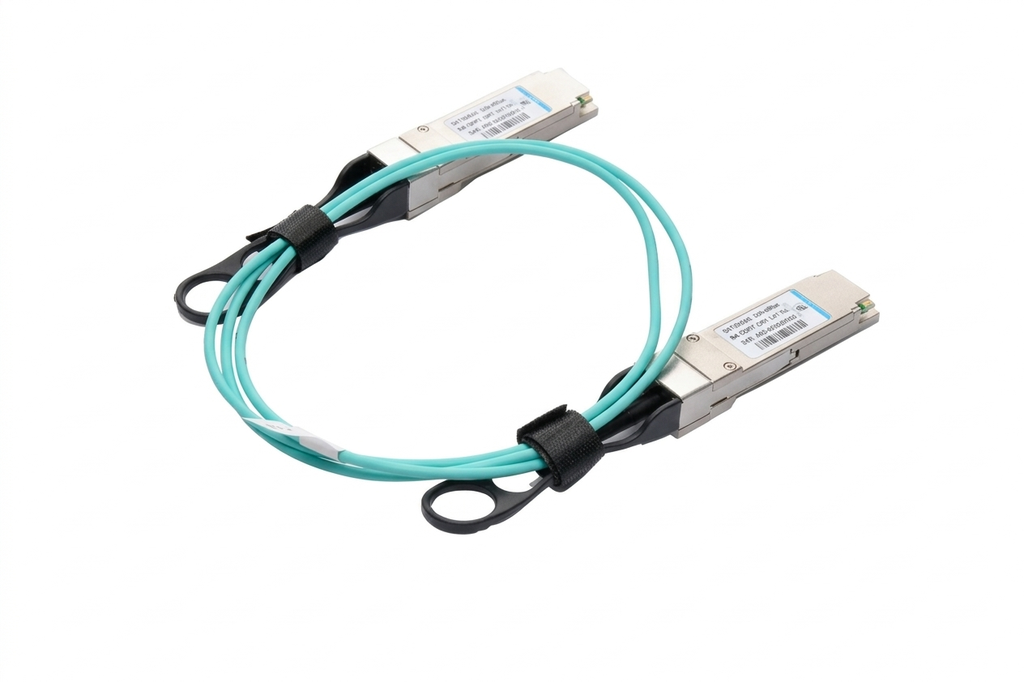

100G QSFP28 to QSFP28 Active Optical Cable series
An added advantage of using our AOCs is our ability to code for multi-vendor solutions, allowing you to connect from one vendor’s switch to another vendor's switch or NIC.
| Parameter | Specification |
|---|---|
| Form Factor | QSFP28 to QSFP28 |
| Data Rate | 100Gbps |
Minimum Bend Radius | 30mm |
CDR (Clock and Data Recovery) | TX & RX Built-in CDR |
Wavelength | 850nm |
Cable Length | 0.5m-30m |
Cable Type | Optical Cable |
| Fiber Type | Multi-Mode Fiber |
MTBF | ≈50 Million Hours |
Modulation Format | 4x 25G-NRZ to 4x 25G-NRZ |
| Power Supply | 3.3V |
| Power Consumption | <2.2 W |
| Digital Diagnostics | DDM Supported |
| Operating Temperature | 0°C ~ 70°C |
| Industrial Option | -40°C ~ 85°C |
| Supported Protocols | 100G Ethernet, IEEE 802.3 bm, SFF-8665 |
Features
100G QSFP28 AOC
Data Rate (Per Channel) 25.78Gbp/s
Aggregate Bit Rate 103.125 Gbp/s
Transmission Distance Up to 100m
QSFP28 End 1 QSFP28 MSA Compliant
QSFP28 End 2 QSFP28 MSA Compliant
Power Supply Single 3.3V
Temperature Range 0 to +70°C
Power Consumption < 2.2W per cable end
RoHS-6 Compliant
Connectivity examples

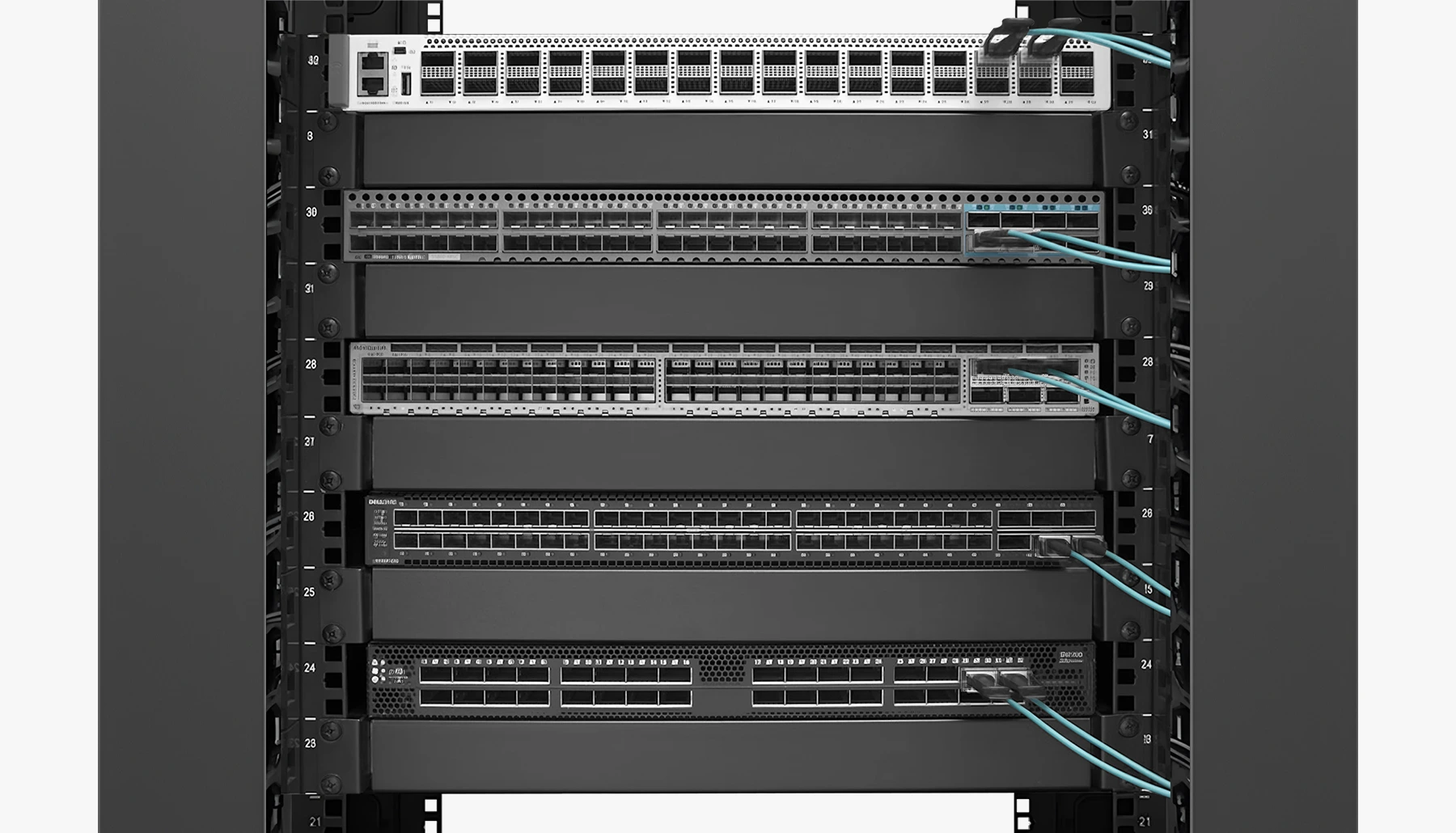

Here is an example of how AOCs are typically used inside systems racks to link subsystems together, between switches, and across systems in rows:
100G Switch to 100G Switch Direct Connectivity
100G Switch to 100G Server/NIC Direct Connectivity
AOC Features and Advantages
- Longer reach capability than DAC 3-7 meter limits
- 3-100 meter multi-mode technology
- 100-200 meters single-mode technology
- Thinner, lighter, and tighter bend radius cables enabling more flexible configurations, increased airflow for cooling, and easier system maintenance
Compared to more expensive optical transceivers, AOCs offer:
- Dramatically lower priced solution than two optical transceivers and connectorized fiber based links
- Lower power consumption at 2.2 Watts versus up to 2.6 to 4.5 Watts for optical transceivers (4-channel)
- Lower operational and maintenance cost
Applications
Deployment scenarios for this module
Residential & MDU Broadband
Service providers can deploy fiber directly into customer routers with SFP+ ports, eliminating the traditional external ONT.
Mobile Backhaul & Small Cells
The compact XGS-PON ONT in SFP+ format is ideal for mobile network edge deployments where space and power are limited.
Enterprise Fiber Access
Enterprises can integrate PON connectivity directly into existing network infrastructure such as switches, routers, or firewalls.
Quality Certification
At E.C.I. NETWORKS, all our optical transceivers are CE, FCC, RoHS, and FDA laser compliant, meeting global standards for safety, environmental responsibility, and electromagnetic performance.
Key Certifications
Emissions and immunity compliance for IT and multimedia equipment.
Verified as unintentional radiators with SDoC available.
Safety-certified and laser-classified (Class 1).
U.S. laser safety regulations.
Free from hazardous substances and environmentally responsible.
Available on selected models per regional or customer needs.
Compliance Standards
These certifications ensure our transceivers are safe, interoperable, and built to meet the highest global compliance standards across data center, telecom, and enterprise environments.
Conflict-Free Sourcing
We comply with the SEC Conflict Minerals Rule, supporting ethical sourcing practices for minerals like tantalum, tin, tungsten, and gold.
Quality Certification
At E.C.I. NETWORKS, all our optical transceivers are CE, FCC, RoHS, and FDA laser compliant, meeting global standards for safety, environmental responsibility, and electromagnetic performance.
Key Certifications
Emissions and immunity compliance for IT and multimedia equipment.
Verified as unintentional radiators with SDoC available.
Safety-certified and laser-classified (Class 1).
U.S. laser safety regulations.
Free from hazardous substances and environmentally responsible.
Available on selected models per regional or customer needs.
Compliance Standards
These certifications ensure our transceivers are safe, interoperable, and built to meet the highest global compliance standards across data center, telecom, and enterprise environments.
Conflict-Free Sourcing
We comply with the SEC Conflict Minerals Rule, supporting ethical sourcing practices for minerals like tantalum, tin, tungsten, and gold.
Performance & Reliability
We ensure our optical transceivers deliver exceptional performance and long-term reliability through rigorous testing on industry-leading equipment.
Power & Wavelength Testing
We verify signal strength and wavelength stability to ensure seamless decoding and consistent transmission across the optical path.
Traffic Testing
All transceivers undergo bit error rate (BER) and packet loss testing to guarantee zero data loss and full compliance with Ethernet and Fiber Channel standards.
Optical Performance Validation
Our modules are evaluated for signal integrity, eye diagram clarity, and BER, ensuring stable, high-quality optical transmission in all operating conditions.
End Face Inspection
Each module's fiber interface is inspected and cleaned to eliminate contamination and physical defects - a critical step for optimal signal performance and long service life.
Warranty & Compatibility
Warranty: 2 years (hardware defects under normal usage with default firmware)
Returns: 30 days unopened/unused, 25% restocking fee
Zero Risk
Using our transceivers does not void the warranty of your network equipment. Global OEM policies and consumer protection laws (Magnuson-Moss Warranty Act) prevent manufacturers from denying support based solely on the use of third-party components.
Guaranteed Compatibility
Our modules are coded and tested for seamless operation across major platforms including Cisco, Arista, Juniper, HPE, Nvidia, Huawei, and more. This rigorous validation ensures plug-and-play reliability and full compliance with OEM specifications.
Technical Support & RMA
Have an issue? We provide full technical support and hassle-free RMA on all eligible transceivers. Our team is ready to help with any technical questions about compatibility or deployment. contact our technical support support@ecin.ca
Q&A
Commonly asked questions
No. Under the Magnuson-Moss Warranty Act and similar global consumer protection laws, OEMs cannot void your equipment warranty simply because you use a third-party transceiver. Your equipment warranty remains intact.
- AOC offers a plug-and-play optical solution (no separate optics + fiber needed)
- Combines ease of deployment + longer reach + better density
Typically 10m to 100m+ depending on speed (100G / 400G / 800G)
No need for:
- Fiber patching
- Optics matching (SR4, DR4, etc.)
Factory-terminated and tested
Thin, lightweight cables improve:
- Airflow
- Rack density
- Cable management
Available for:
- QSFP28 / QSFP-DD / OSFP
- Multi-vendor environments (Cisco, Arista, Nvidia, SONiC)
Yes. We offer full 5Y support, RMA service, and warranty coverage on all modules.
