400G QSFP-DD Transceivers for High-Performance Networks
Reliable, compatible, and deployment-ready 400G optical transceivers designed for high-performance data centers, cloud networks, telecom environments, service-provider networks, and AI-driven infrastructure. E.C.I. NETWORKS offers a broad 400G optics portfolio, including short-reach multimode, single-mode DR4/XDR4/FR/LR/ER, and coherent ZR/ZR+ QSFP-DD solutions engineered for everything from intra-data-center connectivity to DCI, metro, and extended-reach deployments. With standards-based QSFP-DD / QSFP56-DD form factors, PAM4 signaling, MSA compatibility, digital diagnostics, and options for direct 400G-to-400G links or 400G breakout to 4×100G, ECIN 400G optics help simplify high-density network upgrades across open and OEM environments.
Key Features
- 4x106.25Gbps PAM4 parallel lanes
- 8 x 53.125 Gbps PAM4 electrical interface (400GAUI-8)
- 4 channels transmitters and PIN receivers
- Maximum power consumption 8 W
- MPO-12 connector
- Up to 10km transmission on single mode fiber
- Operating case temperature: 0°C to 70°C
- Single 3.3 V power supply
- QSFP-DD MSA compliant
- Compliant to IEEE 802.3cu

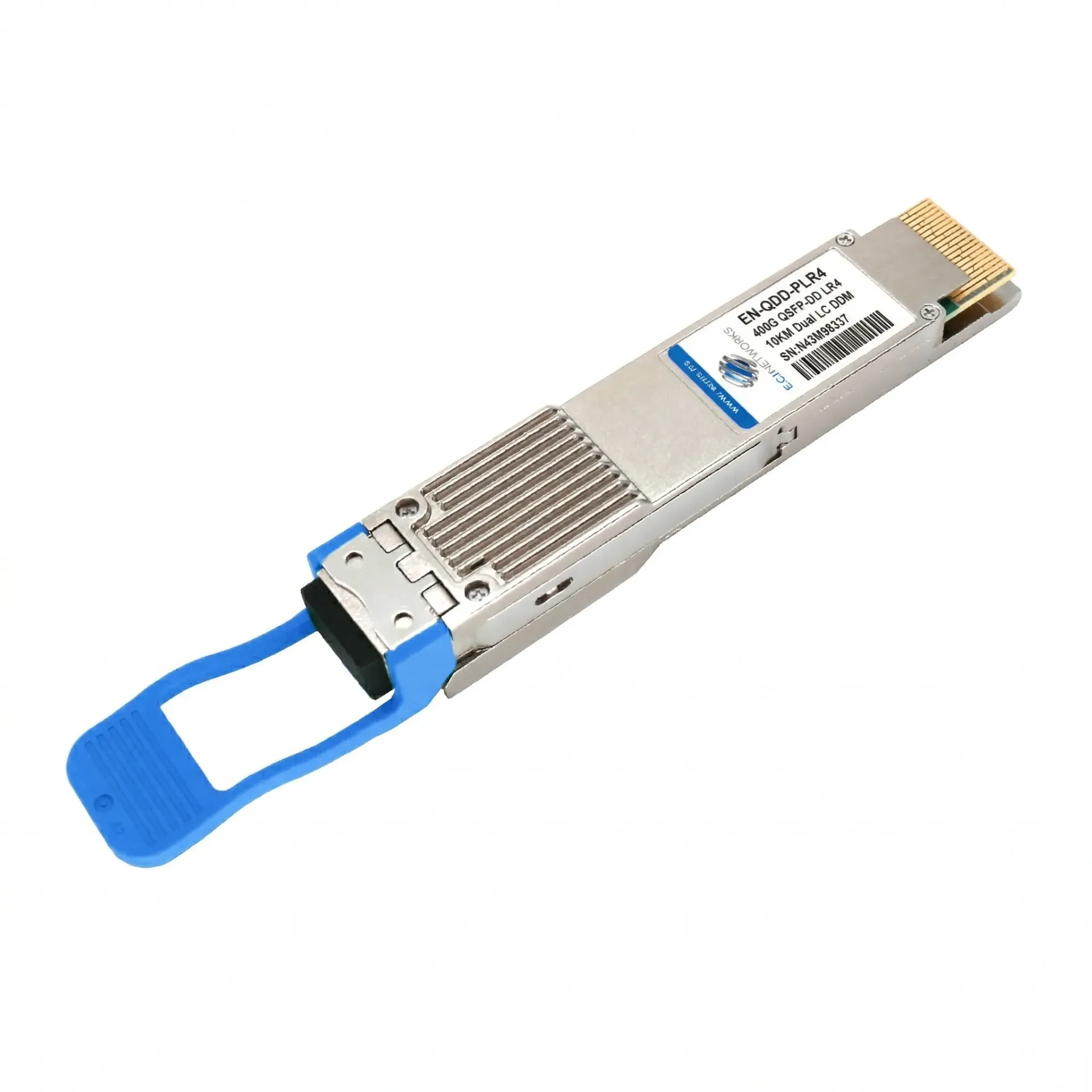

400G QSFP-DD PLR4 Optical Transceiver
The 400G QSFP-DD PLR4 is a 400Gb/s Quad Small Form Factor Pluggable Double Density optical module designed for 10km optical communication over single-mode fiber. The module converts 8 channels of 53.125Gb/s PAM4 electrical input data into 4 channels of 106.25Gb/s PAM4 parallel optical signals for aggregate 400Gb/s transmission. On the receive side, the module converts 4 channels of parallel optical input signals back into 8 channels of 53.125Gb/s PAM4 electrical output data. Unlike FR4/LR4 optics, PLR4 does not multiplex CWDM wavelengths over a duplex fiber pair; it uses four parallel optical lanes over an MPO-12 interface, supporting 400G Ethernet links up to 10km and 4:1 breakout with 100GBASE-LR applications.
| Parameter | Specification | Parameter | Specification |
|---|
| Form Factor | QSFP-DD | Data Rate | 400Gbps aggregate; 8 × 53.125Gb/s PAM4 electrical interface, 400GAUI-8, to 4 × 106.25Gb/s PAM4 parallel optical lanes |
| Standard Compliance | QSFP-DD MSA Rev 4.0; IEEE 802.3cu; 100G Lambda MSA / 4×100GBASE-LR1 optical alignment; 400GAUI-8 / OIF-CEI-56G-VSR-PAM4; CMIS 4.0; RoHS | Modulation | PAM4 |
| Wavelength | 1310nm nominal; 1304.5–1317.5nm line wavelength range | Connector | MPO-12 |
| Fiber Type | Parallel single-mode fiber, SMF / OS2 / G.652; 4 fiber pairs | Max Reach | Up to 10km over G.652 single-mode fiber |
| Transmit Power | Average launch power: -1.9 to +4.8 dBm per lane; OMAouter: +1.1 to +5.0 dBm per lane | Receiver Sensitivity | OMAouter sensitivity: ≤ -6.1 dBm per lane; average Rx power: -8.2 to +4.8 dBm per lane |
| Optical Budget | Approx. 6.3 dB average-power budget, based on Tx average launch power min and Rx average receive power min; approx. 7.2 dB OMAouter margin | Lane Configuration | 4 Tx / 4 Rx parallel optical lanes over 8 fibers; 8 host electrical lanes; supports 4:1 breakout with 100GBASE-LR / 100G-LR1 |
| Host Interface | QSFP-DD 76-pin host interface; 8-lane 400GAUI-8 electrical interface | FEC Requirement | Host KP4-FEC required for 10km 4×100G-LR1 / PLR4 operation; receiver sensitivity specified at pre-FEC BER 2.4 × 10⁻⁴ |
| Power Supply | 3.3 V nominal; 3.135–3.465 V operating range | Power Consumption | ≤8 W max; supply current ≤2.55 A |
| Digital Diagnostics | DOM/DDM/DDMI supported; I²C / 2-wire management interface compliant with CMIS 4.0; monitors module temperature, voltage, bias current, Tx optical power, and Rx optical power | Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to 85°C | Cable Type | Parallel SMF MPO-12 / MTP-12 cable for direct 400G links; MPO/MTP-to-4×duplex LC breakout cable for 4×100GBASE-LR / LR1 applications |
Connectivity examples
Switch-to-switch (leaf-spine)
This figure shows a direct connectivity between two switches using 100GBASE-SR4 QSFP28 transceivers connected by 1x multi-mode MTP to MTP patch cable.

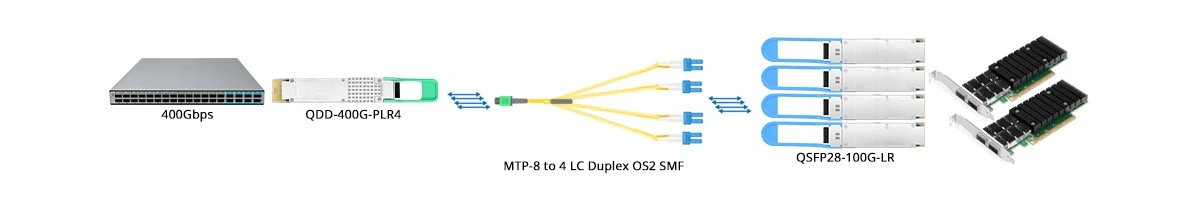

Switch-to-server (via breakout)
