Tested & Proven HPE/ARUBA Transceivers

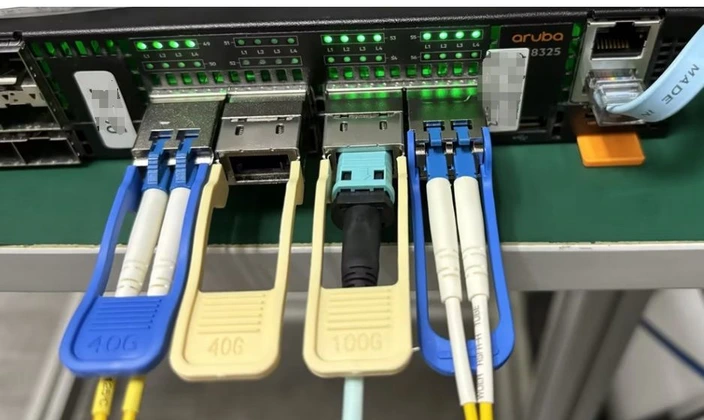

We are excited to announce the expansion of our third-party transceivers for HP/Aruba product lineup, ensuring comprehensive compatibility across various network environments. Our 40G and 100G transceivers have been successfully tested on Aruba 8325, confirming seamless performance. Our offerings now include:
- 1G whole series
- 10G whole series, including 10G copper
- 25G: SR/LR/ER, BIDI
- 40G: SR4/LR4/ER4
- 100G: SR4/LR4/ER4/ZR4/BIDI
Test Results CLI Output
Validation outputs captured from Aruba 8325 are shown below.
8325(config-if)# show int 1/1/16 trans d Transceiver in 1/1/16 Interface Name : 1/1/16 Type : 25G-SR / 25G SFP28 SR Connector Type : LC Transceiver Status : An HPE pluggable module that is supported in this interface Wavelength : 850nm Transfer Distance : 0.00km (SMF), 0m (OM1), 0m (OM2), 70m (OM3) Diagnostic Support : DOM Product Number : JL484A Serial Number : xxxxxxxx Part Number : xxxxxxxx Status Temperature : 37.9961C Voltage : 3.3183V ------------------------------------------------------------ Lane Tx Bias Rx Power Tx Power (mA) (mW/dBm) (mW/dBm) ------------------------------------------------------------ 1 6.9960 0.0458 / -13.39 0.9779 / -0.10
8325(config-if)# show int 1/1/19 trans d Transceiver in 1/1/19 Interface Name : 1/1/19 Type : 25G-LR / 25G SFP28 LR Connector Type : LC Transceiver Status : An HPE pluggable module that is supported in this interface Wavelength : 1310nm Transfer Distance : 10.00km (SMF), 0m (OM1), 0m (OM2), 0m (OM3) Diagnostic Support : DOM Product Number : JL486A Serial Number : xxxxxxxx Part Number : xxxxxxxx Status Temperature : 30.2305C Voltage : 3.2963V ------------------------------------------------------------ Lane Tx Bias Rx Power Tx Power (mA) (mW/dBm) (mW/dBm) ------------------------------------------------------------ 1 36.3140 0.7473 / -1.27 0.9644 / -0.16
8325(config-if)# show int 1/1/51 trans d Transceiver in 1/1/51 Interface Name : 1/1/51 Type : 40G-SR4 / QSFP+ SR4 Connector Type : MPO 1x12 Transceiver Status : An HPE pluggable module that is supported in this interface Wavelength : 850nm Transfer Distance : 0.00km (SMF), 0m (OM1), 0m (OM2), 100m (OM3) Diagnostic Support : DOM Product Number : JH231A Serial Number : xxxxxxxxxxxx Part Number : xxxxxxxxxxx Status Temperature : 23.2148C Voltage : 3.2749V ------------------------------------------------------------ Lane Tx Bias Rx Power Tx Power (mA) (mW/dBm) (mW/dBm) ------------------------------------------------------------ 1 5.9940 0.5184 / -2.85 0.5220 / -2.82 2 5.9940 0.5391 / -2.68 0.5773 / -2.39 3 5.9940 0.5318 / -2.74 0.6185 / -2.09 4 5.9940 0.5510 / -2.59 0.6036 / -2.19
8325(config-if)# show int 1/1/55 trans d Transceiver in 1/1/55 Interface Name : 1/1/55 Type : 100G-SR4 / 100G QSFP28 SR4 Connector Type : MPO 1x12 Transceiver Status : An HPE pluggable module that is supported in this interface Wavelength : 850nm Transfer Distance : 0.00km (SMF), 0m (OM1), 0m (OM2), 70m (OM3) Diagnostic Support : DOM Product Number : JL309A Serial Number : xxxxxxxxxxxxxxxx Part Number : xxxxxxxxxxxxxx Status Temperature : 28.2617C Voltage : 3.3011V ------------------------------------------------------------ Lane Tx Bias Rx Power Tx Power (mA) (mW/dBm) (mW/dBm) ------------------------------------------------------------ 1 5.9940 1.0373 / 0.16 1.0431 / 0.18 2 5.9940 1.0365 / 0.16 1.0088 / 0.04 3 5.9940 1.0347 / 0.15 0.9894 / -0.05 4 5.9940 1.1482 / 0.60 1.0642 / 0.27
8325(config-if)# show int 1/1/49 trans d Transceiver in 1/1/49 Interface Name : 1/1/49 Type : 40G-LR4 / QSFP+ LR4 Connector Type : LC Transceiver Status : An HPE pluggable module that is supported in this interface Wavelength : 1301nm Transfer Distance : 10.00km (SMF), 0m (OM1), 0m (OM2), 0m (OM3) Diagnostic Support : DOM Product Number : JH232A Serial Number : xxxxxxxxxxxxxxxx Part Number : xxxxxxxxxxxxxxxx Status Temperature : 28.9766C Voltage : 3.2971V ------------------------------------------------------------ Lane Tx Bias Rx Power Tx Power (mA) (mW/dBm) (mW/dBm) ------------------------------------------------------------ 1 39.6740 0.0001 / -40.00 1.0069 / 0.03 2 42.2340 0.0001 / -40.00 1.0402 / 0.17 3 42.2340 0.0001 / -40.00 1.0718 / 0.30 4 42.2340 0.0001 / -40.00 1.0728 / 0.31
8325(config-if)# show int 1/1/53 trans d Transceiver in 1/1/53 Interface Name : 1/1/53 Type : 100G-LR4 / 100G QSFP28 LR4 Connector Type : LC Transceiver Status : An HPE pluggable module that is supported in this interface Wavelength : 1302nm Transfer Distance : 10.00km (SMF), 0m (OM1), 0m (OM2), 0m (OM3) Diagnostic Support : DOM Product Number : JL310A Serial Number : xxxxxxxxxxxxxxx Part Number : xxxxxxxxxxxxx Status Temperature : 36.9648C Voltage : 3.3022V ------------------------------------------------------------ Lane Tx Bias Rx Power Tx Power (mA) (mW/dBm) (mW/dBm) ------------------------------------------------------------ 1 52.8780 1.6334 / 2.13 1.2057 / 0.81 2 53.8520 1.7578 / 2.45 1.2924 / 1.11 3 55.4480 1.4496 / 1.61 1.1480 / 0.60 4 54.9960 1.6955 / 2.29 1.4261 / 1.54 Recent Alarms: -- MORE --, next page: Space, next line: Enter, quit: q Name: ArubaOS-CX Version: GL.10.11.1021 Build Id: ArubaOS-CX:GL.10.11.1021:e521752f3358:202305111820 Build Date: 2023-05-11 19:46:20 UTC
These validated outputs confirm supported module recognition and stable optics telemetry across key 25G, 40G, and 100G profiles on Aruba 8325. This gives teams a proven path to scale performance while controlling optics cost.
HPE and Aruba optics questions, answered
What does a successful compatibility test confirm?
It confirms that the tested module is recognized and can establish a stable link on the stated platform, port type and software version.
Why include CLI output in the test record?
CLI evidence captures module identity, link state, diagnostics and errors, making results easier to review and reproduce.
Can a firmware update change compatibility?
It can. Revalidate critical module and platform combinations when switch software, coding requirements or operating policies change.
What should be tested at deployment scale?
Sample the actual platforms and fibre paths, then verify recognition, optical levels, errors, alarms and replacement procedures.
Need Aruba-Compatible Optics at Scale?
Get tested third-party transceivers with compatibility guidance and deployment support from E.C.I. NETWORKS.
