400G QSFP-DD Transceivers for High-Performance Networks
Reliable, compatible, and deployment-ready 400G optical transceivers designed for high-performance data centers, cloud networks, telecom environments, service-provider networks, and AI-driven infrastructure. E.C.I. NETWORKS offers a broad 400G optics portfolio, including short-reach multimode, single-mode DR4/XDR4/FR/LR/ER, and coherent ZR/ZR+ QSFP-DD solutions engineered for everything from intra-data-center connectivity to DCI, metro, and extended-reach deployments. With standards-based QSFP-DD / QSFP56-DD form factors, PAM4 signaling, MSA compatibility, digital diagnostics, and options for direct 400G-to-400G links or 400G breakout to 4×100G, ECIN 400G optics help simplify high-density network upgrades across open and OEM environments.
Key Features
- QSFP-DD MSA compliant
- Parallel 4 Optical Lanes
- Breakout Mode
- o 4x 100GBASE-FR1 compliant 53.125GBd PAM4
- o 100GAUI-2 compliant 2x 26.5625 GBd PAM4
- Aggregation Mode
- o 400 Gb/s Ethernet Protocol 4x 53.125GBd PAM4
- o 400GAUI-8 compliant 8x 26.5625 GBd PAM4
- QSFP-DD MSA compliant
- MPO-12 connector with 8° angled end-face
- Power consumption <12 W
- Operating case temperature 0 to 70 ºC
- CMIS 4.0 management interface
- Up to 2km transmission on single mode fiber (SMF)
- RoHS compliant

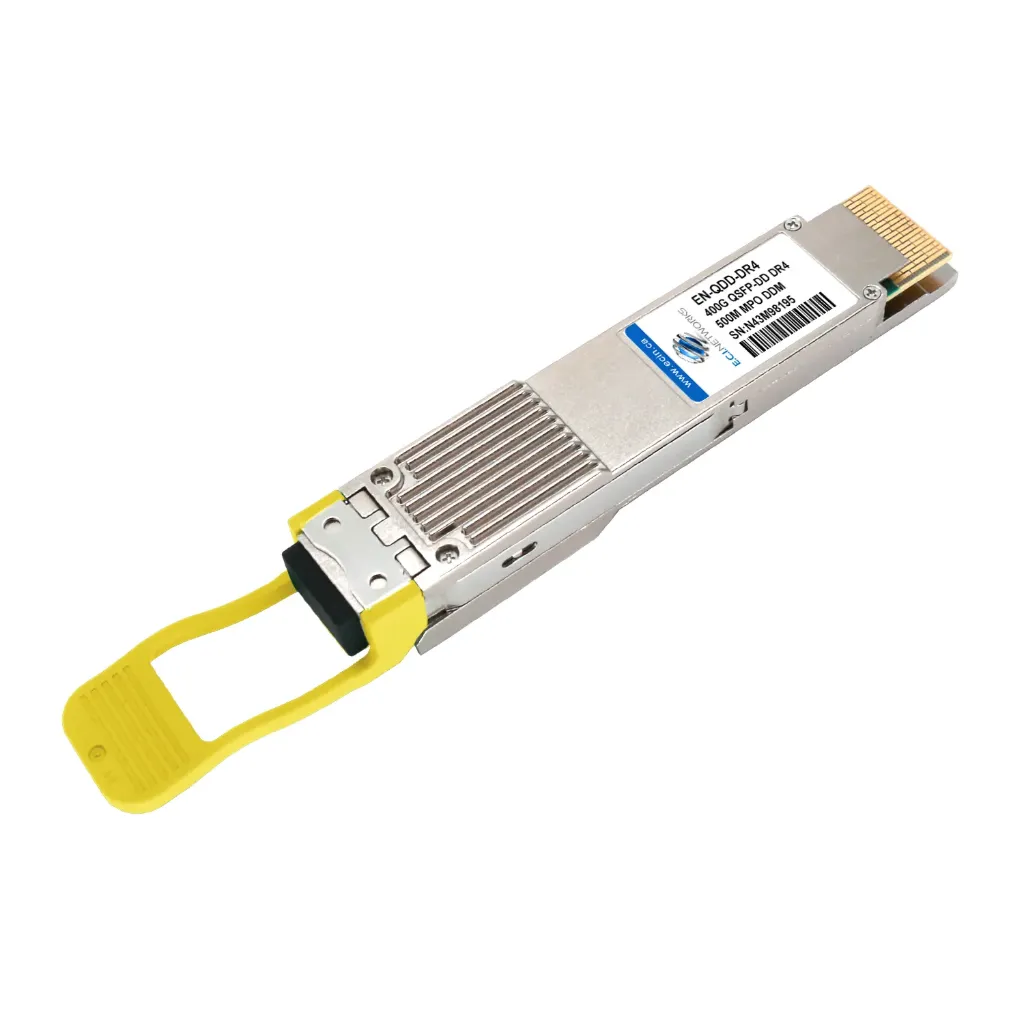

400G QSFP-DD xDR4 Optical Transceiver
EN-QDD-XDR4 (or DR4+) is a is a 4x 100G QSFP-DD FR1 optical transceiver that provides 4 parallel 100GE links over 4 single mode fiber (SMF) pairs via its MPO-12 connector. Each fiber pair link is compliant to 100GBASE-FR1 and thus can support a 400GE to 4x 100GE breakout over 2 km. It combines 8x 26.5625 GBd PAM4 electrical lanes into 4x 53.125 GBd PAM4 optical lanes. Superior performance and reliability is achieved through advanced transmitter and receiver design using cooled EA-DFB-LDs each at a CWDM 1.3 μm wavelength and 4x PIN PDs.
| Parameter | Specification | Parameter | Specification |
|---|
| Form Factor | QSFP-DD / QSFP56-DD | Data Rate | 400GbE aggregate or 4 × 100GE-FR; 8 × 26.5625 GBd PAM4 electrical lanes to 4 × 53.125 GBd PAM4 optical lanes |
| Standard Compliance | QSFP-DD MSA; 400GAUI-8 / CEI-56G-VSR-PAM4; 4 × 100GBASE-FR1; 100GAUI-2 breakout mode; CMIS 4.0; RoHS | Modulation | PAM4 |
| Wavelength | 1310 nm nominal; 1304.5–1317.5 nm range | Connector | MPO-12 / MTP-MPO-12 with 8° angled APC end-face |
| Fiber Type | Parallel single-mode fiber, SMF / OS2 / G.652; 4 fiber pairs | Max Reach | 2 km over SMF with FEC; datasheet operating link distance 0.5–2000 m |
| Transmit Power | Average launch power: -3.1 to +4.0 dBm per lane; OMAouter: -0.1 to +4.2 dBm per lane | Receiver Sensitivity | OMAouter sensitivity: ≤ -4.5 dBm per lane; average Rx power: -7.1 to +4.0 dBm per lane |
| Optical Budget | ~4 dB supported insertion loss / link budget | Lane Configuration | 4 Tx / 4 Rx optical lanes over 8 fibers; 8 host electrical lanes; supports 400G-to-4×100G-FR breakout |
| Host Interface | QSFP-DD MSA 76-pin host interface; 400GAUI-8 electrical interface; 100GAUI-2 per 100G breakout lane | FEC Requirement | FEC required / performed by host platform; pre-FEC BER 2.4 × 10⁻⁴, post-FEC BER 1 × 10⁻¹² |
| Power Supply | 3.3 V nominal; 3.135–3.465 V operating range | Power Consumption | ≤12 W max |
| Digital Diagnostics | DOM/DDM supported; CMIS 4.0 / 2-wire management interface | Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to 85°C | Cable Type | Parallel SMF MTP/MPO-12 APC cable; 8 fibers used, 4 Tx + 4 Rx; MTP/MPO-to-4×LC breakout cable for 4×100G-FR1 applications |
Connectivity examples
Switch-to-switch (leaf-spine)

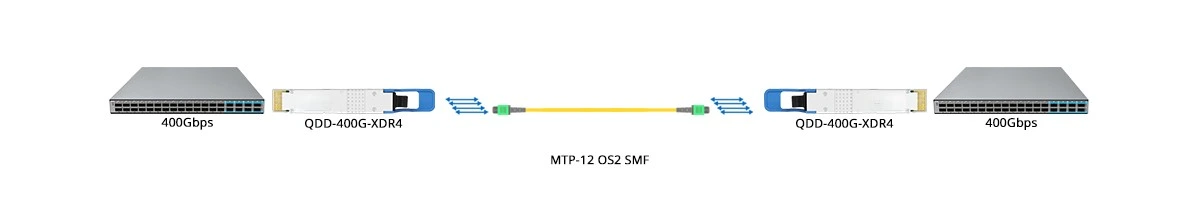

This figure shows a direct connectivity between two switches using 100GBASE-SR4 QSFP28 transceivers connected by 1x multi-mode MTP to MTP patch cable.

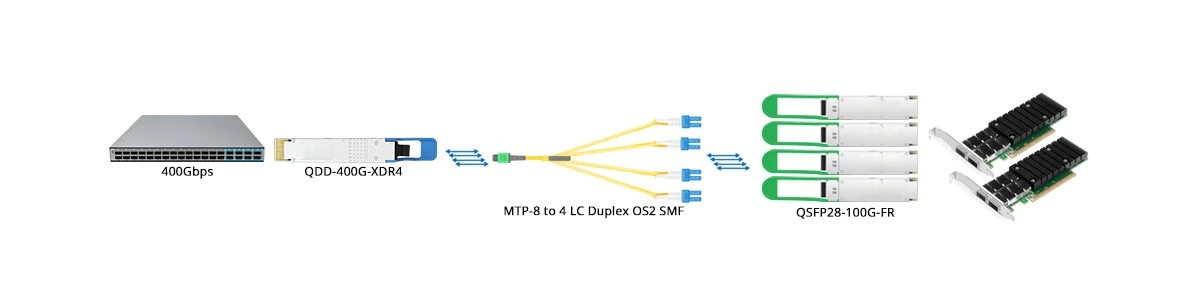

Switch-to-server (via breakout)
