Specifications
100G Transceivers for High-Performance Networks
Reliable, compatible, and deployment-ready 100G optical transceivers and direct attach solutions designed for data centers, enterprises, telecom networks, cloud environments, and AI-driven infrastructure. E.C.I. NETWORKS delivers a broad portfolio of 100G connectivity solutions engineered for performance, interoperability, and fast deployment across open and OEM networking environments.
Key Features
- Compliant with IEEE 802.3cu & 100G Single Lambda MSA
- Compliant with QSFP28 MSA
- Optical Interface: 106.25 Gbps (PAM4)
- Electrical Interface: 25.78 Gbps (NRZ) x 4
- 1310nm EML and PIN design
- Up to 10km over SMF with FEC
- Operating case temperature: 0 to 70℃
- Single 3.3V power supply
- Power consumption: 4.5W Max.
- LC duplex connector
- RoHS compliant
100G QSFP28 LR1 Optical Transceiver
The optical transceiver integrates the transmit and receive path onto one module. On the transmit side, A DSP based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal, DSP output the PAM4 signal to laser drivers, which control one EML with 1310 nm center wavelengths. The optical signals are coupled into a single-mode fiber through an industry-standard LC connector. On the receive side, 1310nm PAM4 optical receiver data streams is coupled to a PIN PD and PAM4 transimpedance amplifier, DSP convert the PAM4 signal to 4x25G NRZ signal and output to the module electrical interface . This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.
| Parameter | Specification | Parameter | Specification |
|---|
| Form Factor | QSFP28 | Data Rate | 100Gbps (4 × 25Gbps NRZ) |
| Standard Compliance | IEEE 802.3cu (100GBASE-LR1), 100G Single Lambda MSA | Modulation | PAM4 (single lambda, 53.125 GBd optical; 25.78Gbps NRZ electrical per lane) |
| Wavelength | 1310nm | Connector | LC Duplex |
| Fiber Type | Single-Mode Fiber (SMF, G.652) | Max Reach | 10 km over SMF (FEC required) |
| Transmit Power | -1.4 dBm to +4.5 dBm (avg launch power) | Receiver Sensitivity | ≤ -6.1 dBm |
| Optical Budget | ~1.9 dB | Lane Configuration | 4 electrical lanes (NRZ) multiplexed into 1 optical lane (PAM4, single lambda) |
| Host Interface | QSFP28 MSA, SFF-8636 | FEC Requirement | FEC is mandatory to achieve the full 10km reach (not optional) |
| Power Supply | 3.3V | Power Consumption | ≤ 4.5W Max |
| Digital Diagnostics | DOM/DDM Supported | Operating Temperature | 0°C to 70°C (Commercial) |
| Storage Temperature | -40°C to 85°C | Cable Type | Duplex LC (SMF patch cable) |
Connectivity examples
Switch-to-switch (leaf-spine)
This figure shows a direct connectivity between two switches using 100GBASE-SR4 QSFP28 transceivers connected by 1x multi-mode MTP to MTP patch cable.
Switch-to-server
This figure shows a direct connectivity between two switches using 100GBASE-SR4 QSFP28 transceivers connected by 1x multi-mode MTP to MTP patch cable.

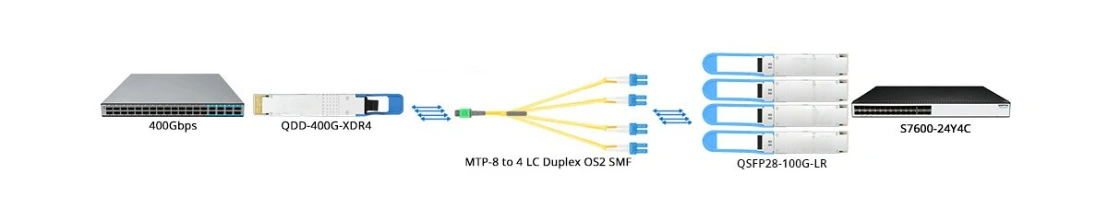

Switch-to-server (via breakout)
Selection Guide
Which 100G Transceiver Should I Choose? Selecting the right 100G transceiver depends on distance, fiber type, and infrastructure. Use the guide below to quickly identify the best option for your deployment.
| Selection Criteria | Option | Recommended Transceivers | Fiber / Connector | Typical Use Case |
|---|---|---|---|---|
| Distance (Reach) | ≤ 100m | SR4, SR BiDi | MMF (MPO / LC) | Intra-rack, leaf-spine |
| ≤ 500m | DR, PSM4 | SMF (LC / MPO) | Data center interconnect | |
| ≤ 2km | FR, CWDM4 | SMF (LC) | DCI / aggregation | |
| 10km – 40km | LR4, ER4 | SMF (LC) | Campus / metro | |
| ≥ 80km | ZR4 | SMF (LC) | Long-haul / DCI | |
| Fiber Type | Multimode (OM3/OM4/OM5) | SR4, SR BiDi | MPO / LC | Short-range DC |
| Single-mode (OS2) | DR, FR, CWDM4, LR4, ER4, ZR4 | LC | Medium to long reach | |
| Parallel SMF | PSM4, PLR4 | MPO | Hyperscale / legacy MPO | |
| Connector Type | MPO / MTP | SR4, PSM4, PLR4 | Multi-fiber | High-density links |
| Duplex LC | CWDM4, LR4, DR, FR, ER4, ZR4 | 2 fibers | Standard deployments | |
| LC (BiDi MMF) | SR BiDi | 2 fibers | Fiber reuse / migration | |
| Optical Technology | NRZ (4×25G) | SR4, PSM4, LR4, CWDM4 | MPO / LC | Mature, widely deployed |
| PAM4 (Single Lambda) | DR, FR, LR (new gen) | LC | AI / cloud / future-ready | |
| Breakout Capability | 100G → 4×25G | SR4, PSM4, DAC, AOC | MPO / breakout cable | Server fan-out |
| Power & Thermal | 2.5W – 3.5W | SR4 | — | High-density DC |
| 3.5W – 4.5W | CWDM4, LR4 | — | Standard SMF | |
| 4.5W – 6W | ER4, ZR4 | — | Long distance |
